Green Laser Line Guide 15mW 532nm 24' Line With Power Supply
Green Laser Line Guide for Granite Marble Wood 15mW 532nm
Manufacturer part number:
SMM35532E15LS
$597.00
$35.85
$17.00
Condition:
New
Industrial Laser Line Guide Green 15mW 532nm
Line 24' Long

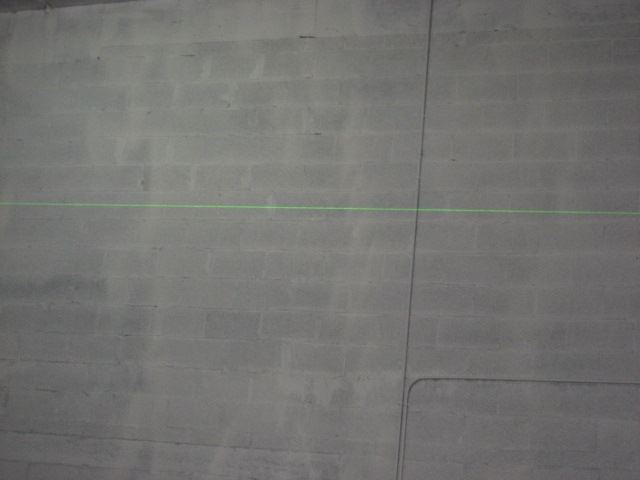

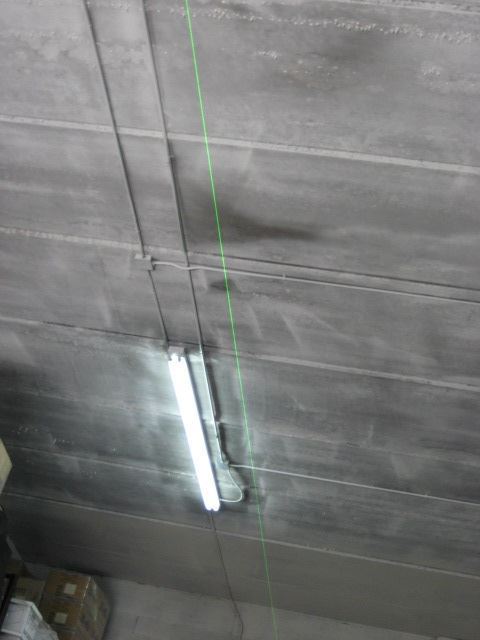

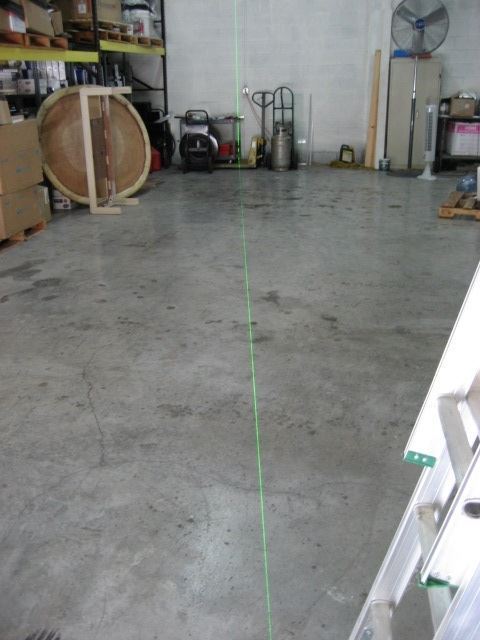

This unit will deliver a Line beam that can be projected on a surface as a guide line.
It is very good for locations very well illuminated. It can be used in concrete, Marble, Granite,
Lumber and Steel cutting machines as well as many other industrial applications where a visible straight Guide line is needed.
| Model No. |
SMM35532E15LS |
| Wavelength |
532 nm |
| Spatial Mode |
TEM00 |
| Output Power |
15 mW |
| Residual IR (1064&808nm) |
<0.01% |
| Operation Current |
0.150 A |
| Operation Mode |
CW |
| Line width |
~2mm |
| Pointing Stability |
<0.1 mrad |
| Beam Divergence |
0.5 mrad |
| Power Stability* |
<5% per 2 hrs |
| Temperature Stabilizing |
TEC |
| Warm Up Time |
<5 minutes |
| Beam Quality (M2) |
<1.2 |
| Optimum Operating Temp. |
20~30oc |
| Storage Temperature |
10~50oC |
| MTTF** |
5000 hrs |
| Dimensions |
Small Dia 30mm x Dia 40x Len 82 mm |
| Power Supply |
95/240VAC - 50/60KHz (Included) |
| Laser Safety Class |
3B |
